分析预测设备最佳效益

1. 说明

1. 加载最新训练的模型权重，用作后续的分析预测。
2. 根据用户提供的分析范围，输出分析预测的结果为文件。
3. 将分析预测的结果文件传输至FastWeb，同时更新分析预测结果信息。

2. 设计Python程序

  设计的Python示例程序如下：

# 分析预测

import torch
import torch.nn as nn
#import torch.optim as optim
import json
#import websockets
import requests
#from aiohttp import web
#from pydantic import BaseModel
import csv
import random
import datetime
#import asyncio
import os
import logging
from logging.handlers import TimedRotatingFileHandler
import sys
#import gc

fastweb_url='http://192.168.0.201:8803'

# 检测目录是否存在，如不存在则创建新目录
def create_directory_if_not_exists(directory_path):
    if not os.path.exists(directory_path):
        os.makedirs(directory_path)
        #logger.info(f"目录 '{directory_path}' 创建成功！")

# 定义神经网络模型
class NeuralNetwork(nn.Module):
    def __init__(self):
        super(NeuralNetwork, self).__init__()
        self.hidden_layers = nn.Sequential(
            nn.Linear(4, 100),
            nn.ReLU()
        )
        for _ in range(9):
            self.hidden_layers.add_module(f'hidden_{_+1}', nn.Linear(100, 100))
            self.hidden_layers.add_module(f'relu_{_+1}', nn.ReLU())
        self.output_layer = nn.Linear(100, 1)

    def forward(self, x):
        x = self.hidden_layers(x)
        x = self.output_layer(x)
        return x.squeeze(-1)

# 将数据集分割为训练集和验证集
def split_dataset(data, split_ratio):
    random.shuffle(data)
    split_index = int(len(data) * split_ratio)
    train_data = data[:split_index]
    validate_data = data[split_index:]
    return train_data, validate_data

# 将数据保存为CSV文件
def save_dataset_to_csv(filename, data):
    with open(filename, 'w', newline='') as csvfile:
        writer = csv.writer(csvfile)
        writer.writerow(['kp', 'ki', 'kd', 'setpoint', 'sumWeight'])
        writer.writerows(data)

# 加载数据集
def load_dataset_from_csv(filename):
    data = []
    with open(filename, 'r') as csvfile:
        reader = csv.reader(csvfile)
        next(reader)  # 跳过标题行
        for row in reader:
            data.append([float(value) for value in row])
    return data

# 训练数据
def main():
    # 检查是否可用GPU加速
    #os.mkdir('temp/')
    # 配置日志
    logger = logging.getLogger('__dcc_pid_predict__')
    if logger.hasHandlers():
        logger.handlers.clear()
    log_filename = 'log/dcc_pid_predict.log'
    log_formatter = logging.Formatter('%(asctime)s - %(levelname)s - %(message)s')
    log_handler = TimedRotatingFileHandler(log_filename, when="D", interval=1, backupCount=7)
    log_handler.suffix = "%Y-%m-%d.log"
    log_handler.encoding = "utf-8"
    log_handler.setFormatter(log_formatter)
    # 创建日志记录器
    logger = logging.getLogger('__dcc_pid_predict__')
    logger.setLevel(logging.DEBUG)
    logger.addHandler(log_handler)

    # 获取当前日期和时间
    current_datetime = datetime.datetime.now()

    # 根据日期和时间生成自动编号
    # 这里使用年月日时分秒作为编号，例如：20230515120000
    auto_number = current_datetime.strftime("%Y%m%d%H%M%S")

    create_directory_if_not_exists('log/')
    create_directory_if_not_exists('data/')
    create_directory_if_not_exists('model/')

    device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

    #model_path = "model/model.pt"

    model_dir = "model/"

    latest_file = max(
        (os.path.join(model_dir, f) for f in os.listdir(model_dir) if f.endswith(".pt")),
        key=os.path.getctime,
        default=None
    )

    if latest_file:
        model_path = "model/"+os.path.basename(latest_file)
        logger.info(model_path)
    else:
        logger.info("没有找到 .pt 文件")

    # 加载训练好的模型
    model = NeuralNetwork().to(device)
    logger.info("加载模型1")
    model.load_state_dict(torch.load(model_path))
    logger.info("加载模型2")
    model.eval()
    logger.info(f"模型已加载：{model_path}")
    try:
        params = json.loads(input_value.value)
#        params = {"username": "admin","tag": "0","guid": "45156B2E-8EDC-41E5-BE2F-030A10A2ECE4","eqname": "esp32","periodid": 1,"kp_min": 5,"kp_step": 0.1,"kp_max": 30,"ki_min": 5,"ki_max": 25,"ki_step": 0.1,"kd_min": 0,"kd_max": 0,"kd_step": 0.1,"setpoint_min": 30.7,"setpoint_max": 30.7,"setpoint_step": 0.1}
        #elif "guid" in params and "eqname" in params and "periodid" in params and "kp_min" in params and "kp_max" in params and "kp_step" in params and "ki_min" in params and "ki_max" in params and "ki_step" in params and "kd_min" in params and "kd_max" in params and "kd_step" in params and "setpoint_min" in params and "setpoint_max" in params and "setpoint_step" in params:
        guid = params["guid"]
        # 指定生成数值的范围和步长
        kp_min = params["kp_min"]
        kp_max = params["kp_max"]
        kp_step = params["kp_step"]
        ki_min = params["ki_min"]
        ki_max = params["ki_max"]
        ki_step = params["ki_step"]
        kd_min = params["kd_min"]
        kd_max = params["kd_max"]
        kd_step = params["kd_step"]
        setpoint_min = params["setpoint_min"]
        setpoint_max = params["setpoint_max"]
        setpoint_step = params["setpoint_step"]
        # 生成需要预测的数值
        kp_values = None
        if kp_min == kp_max:
            kp_values = torch.tensor([kp_min], dtype=torch.float32)
        else:
            kp_values = torch.arange(kp_min,kp_max + kp_step,kp_step, dtype=torch.float32)
            ki_values = None
        if ki_min == ki_max:
            ki_values = torch.tensor([ki_min], dtype=torch.float32)
        else:
            ki_values = torch.arange(ki_min,ki_max + ki_step,ki_step, dtype=torch.float32)
        kd_values = None
        if kd_min == kd_max:
            kd_values = torch.tensor([kd_min], dtype=torch.float32)
        else:
            kd_values = torch.arange(kd_min,kd_max + kd_step,kd_step, dtype=torch.float32)
        setpoint_values = None
        if setpoint_min == setpoint_max:
            setpoint_values = torch.tensor([setpoint_min], dtype=torch.float32)
        else:
            setpoint_values = torch.arange(setpoint_min,setpoint_max + setpoint_step,setpoint_step, dtype=torch.float32)
        # 将输入数据转换为张量
        input_data = torch.cartesian_prod(kp_values, ki_values, kd_values, setpoint_values).to(device)
        # 使用模型进行预测
        with torch.inference_mode():
            predictions = model(input_data)
        # 获取预测的 sumweight 值
        sumweight_values = predictions.flatten()  # 将张量转换为 Python 列表
        result_tensor = torch.cat((input_data,sumweight_values.unsqueeze(0).t()), dim=1)
        # 获取当前日期和时间
        #current_datetime = datetime.datetime.now()
        # 根据日期和时间生成自动编号
        # 这里使用年月日时分秒作为编号，例如：20230515120000
        auto_number = current_datetime.strftime("%Y%m%d%H%M%S")
        # 保存数据集到 CSV 文件
        csv_file = f"data/{params['eqname']}_{auto_number}.csv"  # 保存的 CSV 文件路径
        with open(csv_file, 'w', newline='') as file:
            writer = csv.writer(file)
            writer.writerow(['kp', 'ki', 'kd', 'setpoint', 'sumweight'])  # 写入 CSV 文件的表头
            writer.writerows(result_tensor.tolist())  # 写入数据集内容

        logger.info(f"数据集已保存到 {csv_file}")

        csv_filename = f"{params['eqname']}_{auto_number}.csv"

        # 计算预测结果数据集中的最小值及其对应的 kp、ki、kd 和 setpoint 值
        # result_tensor = result_tensor.cpu()
        min_sumweight, min_index = torch.min(result_tensor[:, 4], dim=0)

        # 找到对应的其他维度数值
        min_kp = result_tensor[min_index, 0]
        min_ki = result_tensor[min_index, 1]
        min_kd = result_tensor[min_index, 2]
        min_setpoint = result_tensor[min_index, 3]
        # 更新记录
        isfinish = True
        # model_path = model_path
        url = fastweb_url + "/?restapi=pid_update_predictlog"
        data = {"guid":guid,"isfinish":isfinish,"min_kp": min_kp.item(),"min_ki": min_ki.item(),"min_kd":min_kd.item(),"min_setpoint":min_setpoint.item(),"min_sumweight":min_sumweight.item(),"csv_file":csv_filename,"model_path":""}
        data = json.dumps(data)
        logger.info(data)
        response = requests.post(url, data=data)
        if response.status_code == 200:
            logger.info("请求成功")

        # 上传文件至FastWeb的目录

        with open(f'{csv_file}', 'rb') as f:
            files = {
                'fileName': (csv_filename, f, 'application/octet-stream'),
                'filePath': (None, 'temp/')
            }

            file_params = {
                'restapi':'uploadfiles'
            }
            response = requests.post(fastweb_url,params=file_params, files=files)

        os.remove(csv_file)

        # 呼叫http 提示已训练完成

        data = json.dumps({"username":params['username'],"action":"callback","tag":params['tag'], \
            "data":{"callbackcomponent":"WebHomeFrame","callbackeventname":"update", \
            "callbackparams":[{"paramname":"messagetype","paramvalue":"success"},{"paramname":"title","paramvalue":"success"},{"paramname":"message","paramvalue":"设备最佳运转效益模型预测分析已完成"}]}})

        input_value.value = '预测分析已完成'

        url = fastweb_url + "/?restapi=sendwsmsg"
        response = requests.post(url, data=data)
        if response.status_code == 200:
            logger.info("请求成功")


        # 保留的系统变量列表（如 __name__ 等）
        keep = {'__name__', '__doc__', '__package__', '__loader__', '__spec__', '__builtins__'}

        # 遍历全局变量并删除非保留项
        for name in list(globals().keys()):
            if name not in keep:
                #print(name)
                del globals()[name]
#        gc.collect()  # 强制垃圾回收

    except Exception as e:
        logger.error(e)

    #sys.exit(0)


if __name__ == "__main__":
    main()

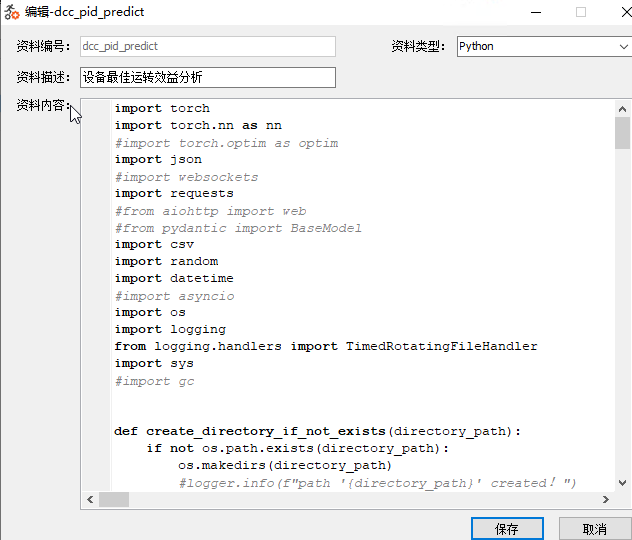

  将上述程序保存为预设资料。按照下述样式进行保存。

  上述程序中定义的参数说明如下：

• 参数名称：input_value。

3. 调用执行

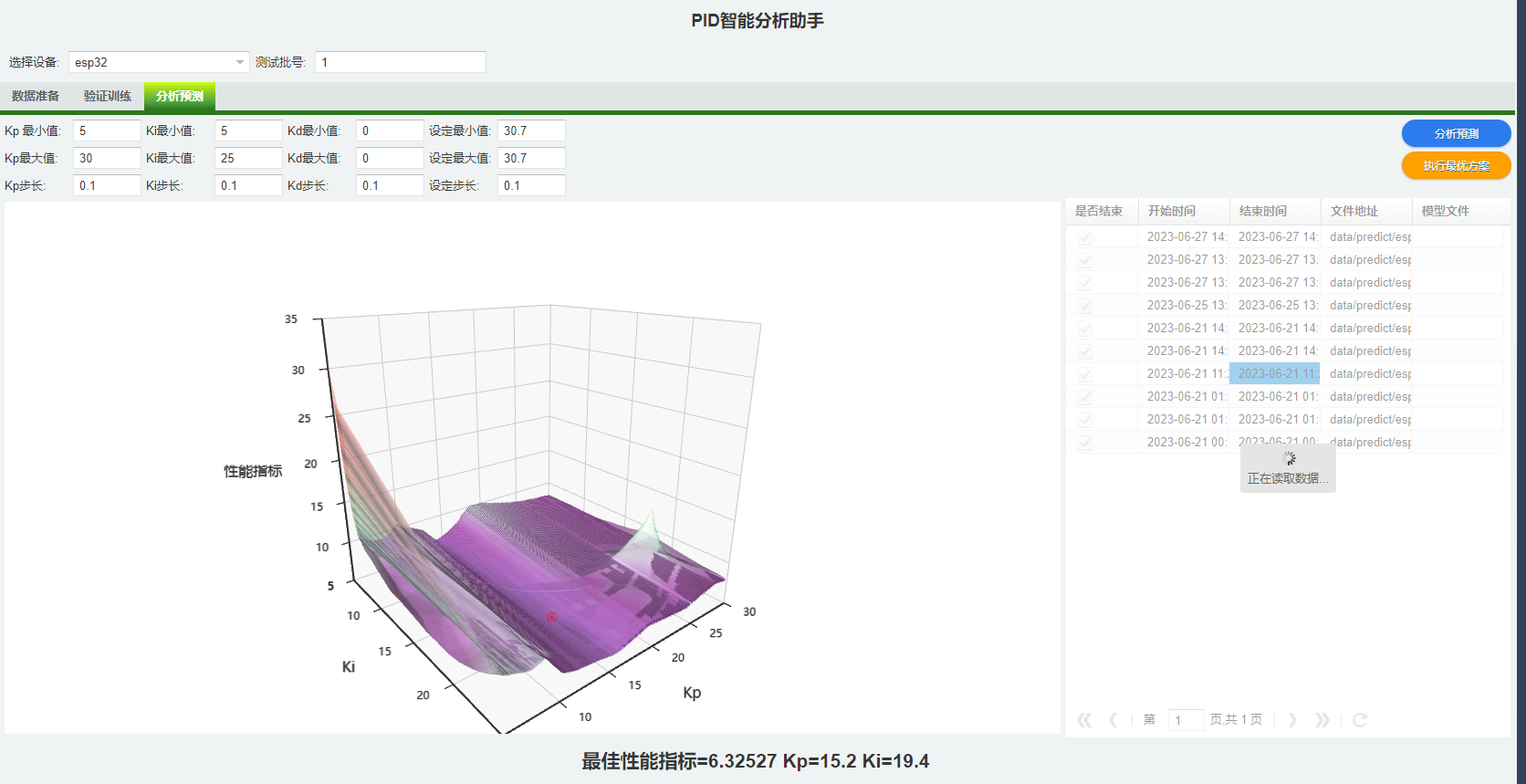

  可以使用FastWeb 数控中心-设备最佳运转效益-PID智能分析助手 (opens new window)来呼叫启用模型分析的Python脚本。设置好调用taskrunner的地址，在分析预测界面点击[分析预测]，以启用模型预测的过程。预测完成后，可以看到此次预测的记录，以及相关的分析预测结果。点击对应的记录可以查看图表信息。
