SVG组态

# Smart之SVG组态

# 1. 说明

  SVG是一种可缩放矢量图形，其使用XML来描述形状特征，关于SVG的说明等信息可参考https://developer.mozilla.org/zh-CN/docs/Web/SVG (opens new window)。由于其矢量图的特性，在进行编辑缩放等相关操作后，图形不失真，可广泛用于图形展示的场合。组态界面由于其图形的特性，非常适合使用SVG来展示。

  通过范例学习，可以掌握使用SVG来展示组态的界面，并通过控件来实现组态界面的动态显示。

# 2. 设计明细

  开启Smart智慧控制平台，分别加入下插图之控件。或者通过点击菜单栏[文件]-[打开项目]选择项目打开该范例。

  1：TPanel组件，控件名称为Panel1。

  2：TAbClock组件，控件名称为AbClock1。

  3：TAbDBLED组件，控件名称为AbDBLED7。

  4：TAbDBLED组件，控件名称为AbDBLED8。

  5：TAbDBLED组件，控件名称为AbDBLED5。

  6：TAbDBLED组件，控件名称为AbDBLED1。

  7：TAbDBToggleSwitch组件，控件名称为AbDBToggleSwitch1。

  8：TAbDBToggleSwitch组件，控件名称为AbDBToggleSwitch2。

  9：TAbDBLED组件，控件名称为AbDBLED2。

  10：TAbDBLED组件，控件名称为AbDBLED3。

  11：TAbDBToggleSwitch组件，控件名称为AbDBToggleSwitch3。

  12：TAbDBToggleSwitch组件，控件名称为AbDBToggleSwitch4。

  13：TAbDBLED组件，控件名称为AbDBLED4。

  14：TAbDBLED组件，控件名称为AbDBLED6。

  15：TRSSVGImageList组件，控件名称为RSSVGImageList1。

  16：TRSSVGImageList组件，控件名称为RSSVGImageList2。

  TRSSVGThreadImage组件用于生成各界面显示用的组件。

  • Main窗体属性设置

    • ClientHeight：窗体客户区高度=550。
    • ClientWidth：窗体客户区宽度=720。

  • 1：Panel1属性设置

    • Align：设置对齐的方式，设置为alTop。
    • Caption：设置显示的字幕内容，设置为反应塔流程图。
    • Height：设置高度，设置为41。
    • Font：设置字体信息。

      点击右侧的[...]，打开字体设置界面，点击设置字体内容。

  • 3：AbDBLED7属性设置

    • Caption：设置显示的字幕内容，设置为增压泵3。

  • 4：AbDBLED8属性设置

    • Caption：设置显示的字幕内容，设置为增压泵4。

  • 5：AbDBLED5属性设置

    • Caption：设置显示的字幕内容，设置为增压泵1。

  • 6：AbDBLED1属性设置

    • Caprtion：设置显示的字幕内容，设置为一号机组。

  • 7：AbDBToggleSwitch1属性设置

    • TextOff：设置关闭状态显示的字幕内容，设置为关。
    • TextOn：设置开启状态显示的字幕内容，设置为开。

  • 8：AbDBToggleSwitch2属性设置

    • TextOff：设置关闭状态显示的字幕内容，设置为关。
    • TextOn：设置开启状态显示的字幕内容，设置为开。

  • 9：AbDBLED2属性设置

    • Caprtion：设置显示的字幕内容，设置为二号机组。

  • 10：AbDBLED3属性设置

    • Caption：设置显示的字幕内容，设置为三号机组。

  • 11：AbDBToggleSwitch3属性设置

    • TextOff：设置关闭状态显示的字幕内容，设置为关。
    • TextOn：设置开启状态显示的字幕内容，设置为开。

  • 12：AbDBToggleSwitch4属性设置

    • TextOff：设置关闭状态显示的字幕内容，设置为关。
    • TextOn：设置开启状态显示的字幕内容，设置为开。

  • 13：AbDBLED4属性设置

    • Caption：设置显示的字幕内容，设置为四号机组。

  • 14：AbDBLED6属性设置

    • Caption：设置显示的字幕内容，设置为增压泵2。

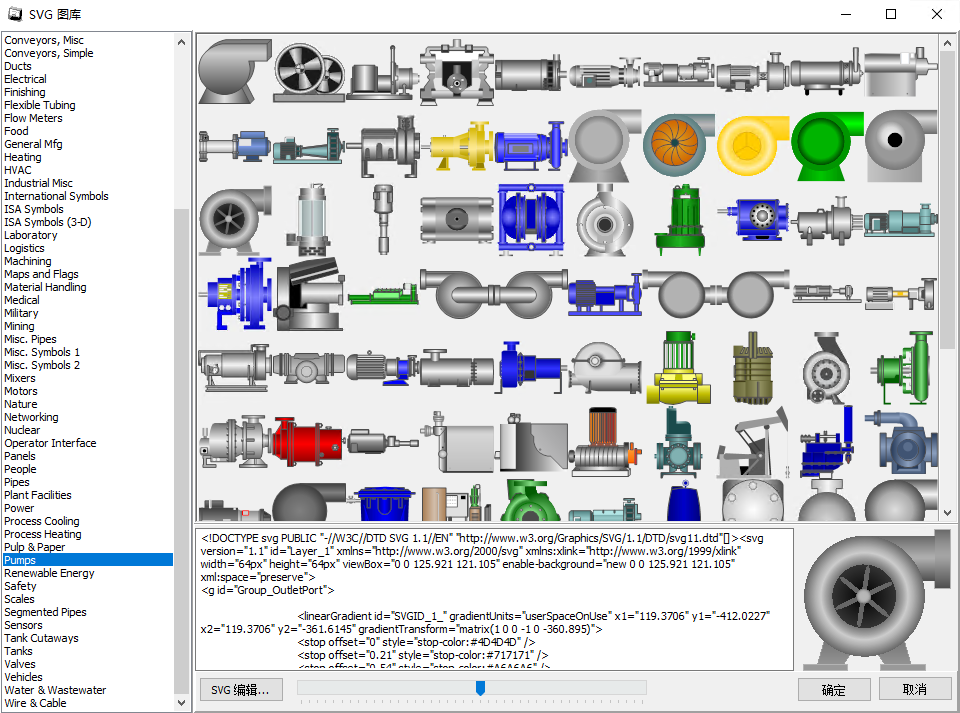

  • 15：RSSVGImageList1属性设置

      点击Items属性右侧的[...]，打开列表，新增两个编辑列表，分别设置Lines属性。

    <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"[]><svg version="1.1" id="Layer_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="64px" height="64px" viewBox="0 0 125.921 121.105" enable-background="new 0 0 125.921 121.105" xml:space="preserve">
<g id="Group_OutletPort">

	    <linearGradient id="SVGID_1_" gradientUnits="userSpaceOnUse" x1="119.3706" y1="-412.0227" x2="119.3706" y2="-361.6145" gradientTransform="matrix(1 0 0 -1 0 -360.895)">
	    <stop offset="0" style="stop-color:#4D4D4D" />
	    <stop offset="0.21" style="stop-color:#717171" />
	    <stop offset="0.54" style="stop-color:#A6A6A6" />
	    <stop offset="0.64" style="stop-color:#9F9F9F" />
	    <stop offset="0.79" style="stop-color:#8C8C8C" />
	    <stop offset="0.97" style="stop-color:#6D6D6D" />
	    <stop offset="1" style="stop-color:#666666" />
    </linearGradient>
    <rect x="112.821" y="0.719" fill="url(#SVGID_1_)" stroke="#B3B3B3" stroke-width="0.5" width="13.101" height="50.408" />

	    <linearGradient id="SVGID_2_" gradientUnits="userSpaceOnUse" x1="83.0708" y1="76.9197" x2="83.0708" y2="115.9207" gradientTransform="matrix(1 0 0 -1 0 122.105)">
	    <stop offset="0" style="stop-color:#4D4D4D" />
	    <stop offset="0.52" style="stop-color:#B2B2B2" />
	    <stop offset="1" style="stop-color:#666666" />
    </linearGradient>
    <polyline fill="url(#SVGID_2_)" points="53.235,6.184 112.907,6.184 112.907,45.185 102.517,45.185  " />
</g>
<g id="Group_Legs">

	    <linearGradient id="SVGID_3_" gradientUnits="userSpaceOnUse" x1="52.5283" y1="1094.1335" x2="52.5283" y2="1058.2527" gradientTransform="matrix(1 0 0 1 0 -973.75)">
	    <stop offset="0" style="stop-color:#999999" />
	    <stop offset="1" style="stop-color:#666666" />
    </linearGradient>
    <path fill="url(#SVGID_3_)" stroke="#999999" stroke-width="0.396" d="M11.321,120.384l10.254-35.881h61.908l10.252,35.881H72.966   L52.462,89.497l-20.769,30.887H11.321z" />
</g>
<g id="Group_LegBase">
    <path fill="#999999" stroke="#B3B3B3" stroke-width="0.5" d="M0.76,115.851h37.533v5.254H0.76V115.851z" />
    <path fill="#999999" stroke="#B3B3B3" stroke-width="0.5" d="M66.603,115.851h37.929v5.254H66.603V115.851L66.603,115.851z" />
</g>
<g id="Group_PumpBody">

	    <radialGradient id="SVGID_4_" cx="126.48" cy="837.1521" r="51.5659" gradientTransform="matrix(0.9999 0.0069 -0.0069 0.9999 -67.9976 -780.2224)" gradientUnits="userSpaceOnUse">
	    <stop offset="0.18" style="stop-color:#333333" />
	    <stop offset="0.26" style="stop-color:#383838" />
	    <stop offset="0.35" style="stop-color:#454545" />
	    <stop offset="0.44" style="stop-color:#5C5C5C" />
	    <stop offset="0.54" style="stop-color:#7B7B7B" />
	    <stop offset="0.64" style="stop-color:#A4A4A4" />
	    <stop offset="0.72" style="stop-color:#CCCCCC" />
	    <stop offset="0.81" style="stop-color:#B1B1B1" />
	    <stop offset="0.99" style="stop-color:#6B6B6B" />
	    <stop offset="1" style="stop-color:#666666" />
    </radialGradient>
    <path fill="url(#SVGID_4_)" d="M53.047,6.158c28.477,0.196,51.402,23.439,51.207,51.917c-0.195,28.475-23.438,51.398-51.914,51.204   C23.862,109.086,0.938,85.841,1.133,57.364C1.326,28.889,24.573,5.963,53.047,6.158z" />
</g>
<g id="Group_CenterShade">

	    <radialGradient id="SVGID_5_" cx="52.4468" cy="-418.7268" r="27.2441" gradientTransform="matrix(1 0 0 -1 0 -360.895)" gradientUnits="userSpaceOnUse">
	    <stop offset="0" style="stop-color:#000000" />
	    <stop offset="1" style="stop-color:#333333" />
    </radialGradient>
    <path fill="url(#SVGID_5_)" d="M38.399,81.168C25.508,73.407,21.35,56.67,29.111,43.78c7.762-12.888,24.502-17.045,37.385-9.285   c12.891,7.761,17.047,24.498,9.289,37.393C68.021,84.769,51.286,88.928,38.399,81.168z" />
</g>
<g id="Group_Impeller">

	    <linearGradient id="SVGID_6_" gradientUnits="userSpaceOnUse" x1="101.9819" y1="125.5398" x2="106.1411" y2="125.5342" gradientTransform="matrix(0.9889 0.1484 0.1484 -0.9889 -69.6528 166.4384)">
	    <stop offset="0.01" style="stop-color:#666666" />
	    <stop offset="0.51" style="stop-color:#B8B8B8" />
	    <stop offset="1" style="stop-color:#666666" />
    </linearGradient>
    <path fill="url(#SVGID_6_)" d="M51.014,77.055c-0.642,4.14-2.024,7.351-3.166,7.187c-1.139-0.165-1.545-3.651-0.902-7.789   l0.014-0.081l5.874-37.983c0.64-4.139,1.986-7.314,3.125-7.149c1.142,0.163,1.507,3.623,0.866,7.76L51.014,77.055z" />

	    <linearGradient id="SVGID_7_" gradientUnits="userSpaceOnUse" x1="-277.9653" y1="21.0618" x2="-273.8071" y2="21.0562" gradientTransform="matrix(0.6317 -0.7752 -0.7752 -0.6317 243.0495 -142.3917)">
	    <stop offset="0.01" style="stop-color:#666666" />
	    <stop offset="0.51" style="stop-color:#B8B8B8" />
	    <stop offset="1" style="stop-color:#666666" />
    </linearGradient>
    <path fill="url(#SVGID_7_)" d="M68.625,68.765c3.234,2.659,5.291,5.485,4.57,6.387c-0.724,0.895-3.931-0.533-7.162-3.193   l-0.063-0.053L36.284,47.493c-3.234-2.66-5.28-5.437-4.559-6.333c0.722-0.898,3.884,0.55,7.117,3.21L68.625,68.765z" />

	    <linearGradient id="SVGID_8_" gradientUnits="userSpaceOnUse" x1="216.7651" y1="433.1179" x2="220.9233" y2="433.1123" gradientTransform="matrix(0.4225 0.9064 0.9064 -0.4225 -432.8737 42.0522)">
	    <stop offset="0.01" style="stop-color:#666666" />
	    <stop offset="0.51" style="stop-color:#B8B8B8" />
	    <stop offset="1" style="stop-color:#666666" />
    </linearGradient>
    <path fill="url(#SVGID_8_)" d="M35.58,67.368c-3.803,1.752-7.245,2.373-7.739,1.332c-0.491-1.041,2.193-3.306,5.994-5.057   l0.076-0.033L68.82,47.527c3.805-1.752,7.195-2.384,7.686-1.345c0.494,1.041-2.188,3.258-5.99,5.008L35.58,67.368z" />

	    <radialGradient id="SVGID_9_" cx="51.9766" cy="64.4246" r="6.541" gradientTransform="matrix(1 0 0 -1 0 122.105)" gradientUnits="userSpaceOnUse">
	    <stop offset="0" style="stop-color:#B8B8B8" />
	    <stop offset="0.47" style="stop-color:#B6B6B6" />
	    <stop offset="0.64" style="stop-color:#AFAFAF" />
	    <stop offset="0.76" style="stop-color:#A3A3A3" />
	    <stop offset="0.85" style="stop-color:#929292" />
	    <stop offset="0.94" style="stop-color:#7D7D7D" />
	    <stop offset="1" style="stop-color:#666666" />
    </radialGradient>
    <path fill="url(#SVGID_9_)" d="M53.274,51.269c3.543,0.718,5.829,4.168,5.11,7.709c-0.717,3.544-4.167,5.83-7.71,5.113   c-3.536-0.719-5.824-4.171-5.105-7.711C46.284,52.844,49.739,50.552,53.274,51.269z" />
</g>
</svg>
